Ultra-low power consumption, ultra-high performance Bluetooth module MBT-R10A

TW-MBT-R10B Bluetooth module is a Bluetooth module that has been developed and mass-produced by Beijing Tongwei Technology Co., Ltd. in the research and development process of a wearable medical product, and cannot find a high-performance and ultra-low-power Bluetooth module that meets the product requirements on the market. The Bluetooth module is based on Onsemi's RSL10 chip, a Bluetooth 5.2, multiprotocol radio system-on-chip (SoC) that enables ultra-low energy Bluetooth (powered by a single coin cell battery) for wireless applications. The RSL10 achieves the industry's lowest power consumption, enabling a wide range of advanced wireless features while optimizing system size and battery life. The highly integrated radio SOC features a dual-core architecture and 2.4GHz transceiver that flexibly supports Bluetooth Low Energy and 2.4GHz custom protocols.

parameter

蓝牙协议	Bluetooth 5.2
速率	62.5bps~2Mbps
工作频率	2.4G
通信接口	Uart
供电电源	1.1-3.6V（可支持纽扣电池供电）
天线	板载陶瓷天线
通信距离	10M以内
size	14.5mm长x10.5mm宽x1.8mm厚
串口参数	115200bps、8数据位、1停止位、无校验、无流控
OTA升级	支持
工作温度	-40℃~85℃
定制选项	波特率，IO逻辑，音频输入/出，边缘计算等

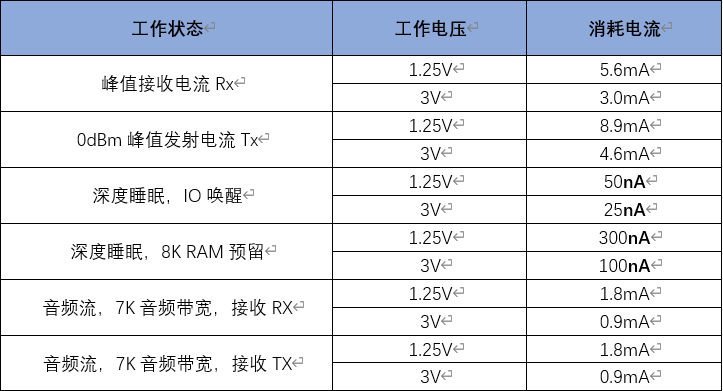

power consumption

RF characteristics

BT发射功率	-17 – 6dBm
BT接收灵敏度	-94dBm（蓝牙低功耗模式，1Mbps）

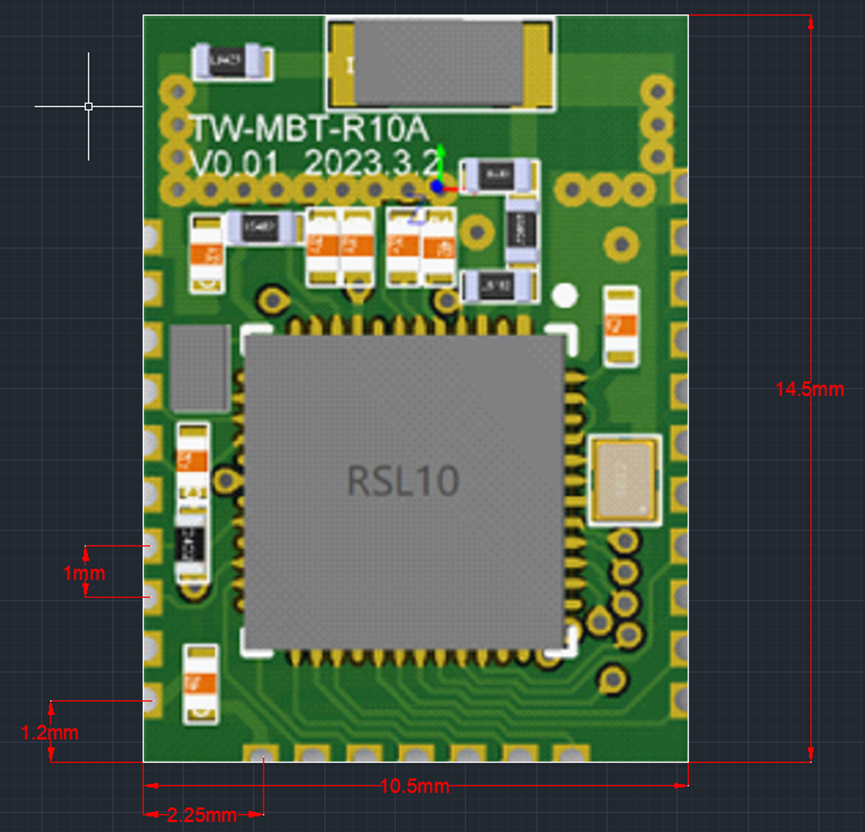

size
